Sites such as mountainous areas, gullies, fish ponds and greenhouses, where conventional mounting structures are hard to install, have long posed challenges for ground-mounted PV projects. CHIKO Solar flexible mounting system adopts a tensioned structure design, compatible with a wide range of complex landforms, and delivers reliable PV installation solutions for constrained sites.

山地、沟壑、鱼塘、大棚上方这类常规支架难以施工的场地，一直是地面光伏项目的难点。晨科太阳能柔性支架系统，依托张拉结构设计，适配多种复杂地貌，为受限地块提供稳妥的光伏架设方案。

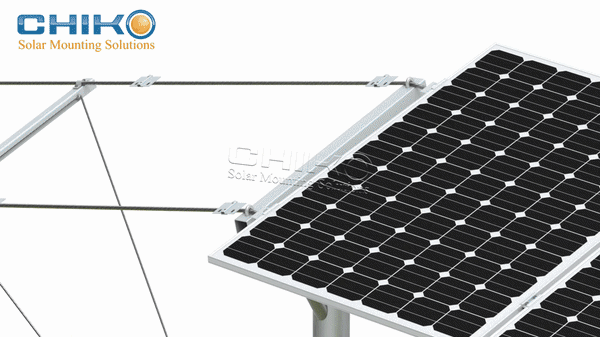

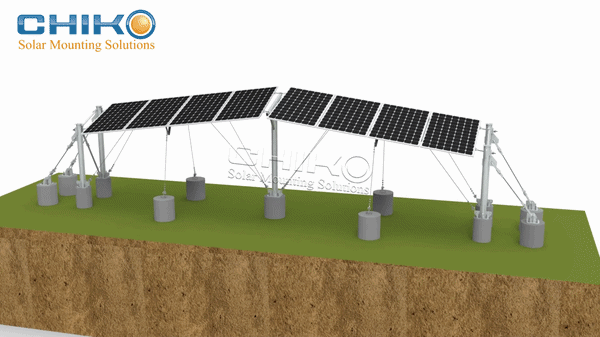

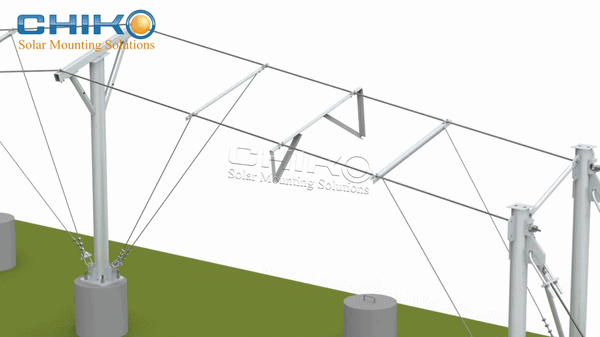

The flexible system uses tensioned steel cables as the primary load-bearing structure. It achieves longer spans with much wider column spacing than traditional rigid mounts, which greatly cuts the number of columns. It causes minimal damage to ground vegetation, water bodies and original facilities. When deployed over fish ponds, mushroom greenhouses and undulating mountain land, the space underneath can retain its original functions without interfering with aquaculture or crop cultivation, making it ideal for agrivoltaic and aquavoltaic projects.

柔性支架以钢索张拉作为主要承载结构，跨度更大，立柱布设间距远大于传统刚性支架，立柱数量大幅减少，对地面植被、水体、原有设施的破坏更低。在鱼塘、菌菇棚、山地起伏地块使用时，下方空间可以正常保留原有用途，不影响水产养殖、农作物种植，很好适配农光、渔光互补项目。

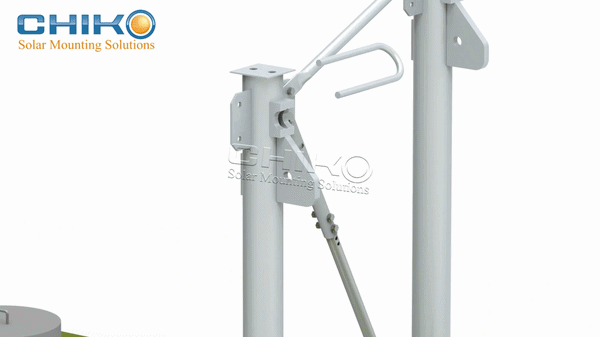

The whole system consists of high-strength steel cables and hot-dip galvanized steel components together with stainless steel connectors. It features stable corrosion resistance and performs well in humid, saline-alkali and foggy outdoor environments. The structure is verified by professional load calculations to meet wind and snow resistance requirements. Cable tension is controllable to evenly distribute loads from PV modules, ensuring long-term structural stability and safeguarding the safety of solar panels.

整套系统选用高强度钢索与热镀锌钢结构构件，搭配不锈钢连接件，防腐性能稳定，能够适应野外潮湿、盐碱、多雾的户外环境。结构经过专业荷载验算，抗风、抗雪能力达标，钢索张力可控，均匀分担组件荷载，长期使用下结构稳定，保护光伏组件安全。

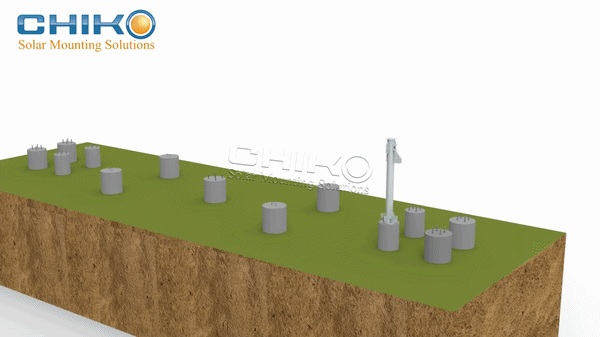

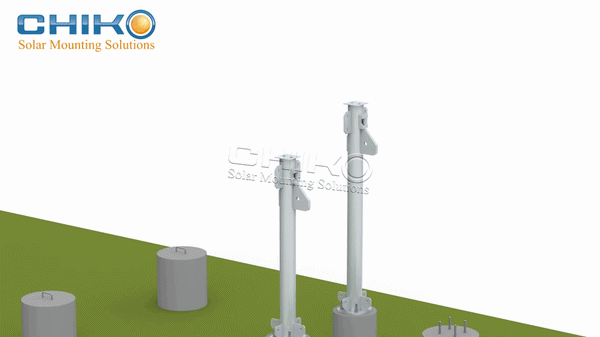

All components are standardized and prefabricated. On-site work mainly involves tensioning and bolt assembly, reducing field welding. Columns are arranged according to local terrain while avoiding low-lying areas and rocky spots. Span and height can be adjusted flexibly to fit irregular plots. Compared with conventional supports, it significantly reduces earth excavation and foundation work and shortens construction schedules.

构件采用标准化预制生产，现场以张拉、螺栓组装为主，减少现场焊接作业。施工时避开低洼、岩石等难处理点位，因地制宜排布立柱，灵活调整跨度与高度，适配地块不规则的现状。相比传统支架，大幅减少土方开挖和基础工程量，缩短施工周期。

For investors and EPC contractors, flexible mounts make it possible to develop many idle sites previously deemed unsuitable, expanding site selection options for PV projects. Solar power stations can be built without occupying prime farmland to generate steady power revenue.

对于投资方和 EPC 来说，柔性支架可以盘活很多原本无法开发的闲置地块，拓展光伏项目选址空间，在不挤占优质耕地的前提下搭建光伏电站，收获持续发电收益。

CHIKO has extensive track record in flexible PV mounting projects. We develop customized layout schemes based on topography and soil conditions of each site, supported by comprehensive manufacturing and on-site installation guidance. Choose CHIKO flexible PV mounting systems to break terrain barriers and enable more land to generate solar returns.

晨科拥有丰富的柔性支架项目落地经验，可根据地块地形、土壤条件出具专属排布方案，配套完善的生产与安装指导服务。选择晨科柔性光伏支架，突破地形限制，让更多土地承载阳光收益。
