Chiba Prefecture, Japan 810KW Tilt Ground Solar Mounting System Project

Data:2020-06-05

Project Name: Shanwu City 808kw Jiyuan High Voltage Solar Mounting System Project

Chiba Prefecture, Japan 810KW Tilt Ground Solar Mounting System Project

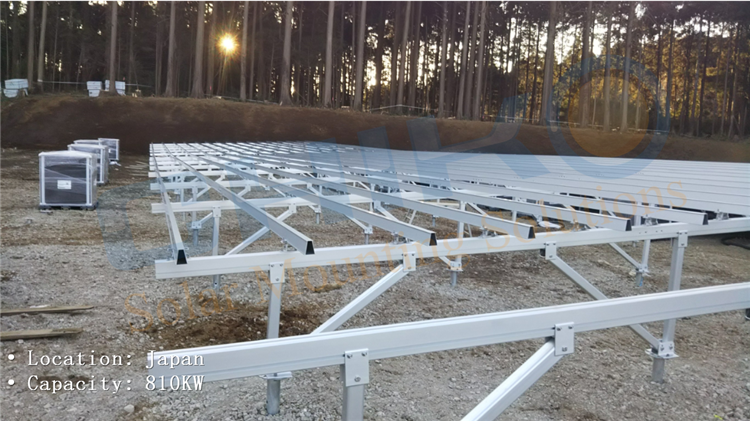

This project Location in Kihara City, Yamatake City, Chiba Prefecture, the whole capacity is 810KW, There are total 4368 solar panels, and layout is east to west 8 columns * 21 columns (main), The ground tilt id 0-12 degrees, and the foundation uses with 1600mm screw pile. In this area, the Wind speed is 38m/s, and snow thichness is 50 cm usually, and the ground height is 100cm.

       The products used in this project CHIKO Aluminum T2VC Ground solar mounting system Series are designed and manufactured for solar farms. This type of bracket is flexible in installation and wide in scope of application, adapting to any configuration, any terrain and any base.

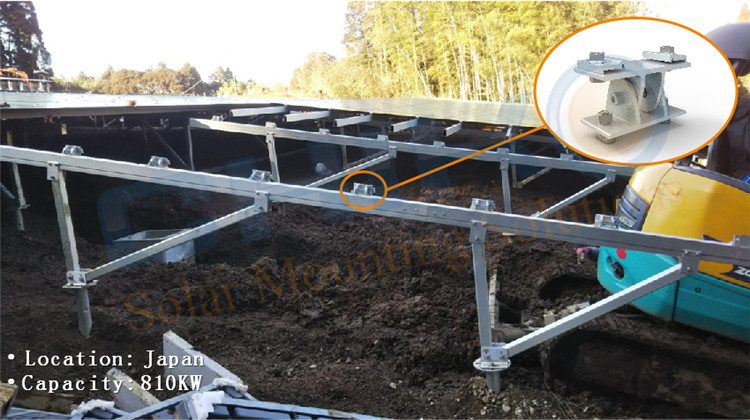

It can be seen from the figure that the project is optimized on the basis of the CHIKO T2VC solar bracket system, making it suitable for the uneven mountain installation conditions in Japan. The entire matrix is ​​tilted from east to west, and the adjustable angle is 0-40 degrees.

The raw material of CHIKO Solar T2VC solar bracket system uses AL6500-T5 advanced anodized aluminum to provide a lightweight solution. All components are pre-cut and pre-drilled for easy assembly at the installation site, saving time and labor costs. High-performance fully anodized materials provide long-lasting durability and service life of more than 30 years. Aluminum TWC ground solar mounting system is a popular promotional product of CHIKO, with low installation cost and fast and convenient construction.

If you have a quote request, please feel free to contact us! We will provide you with the best solution and the best price. As a world-renowned photovoltaic mounting manufacturer, we will strive to be your best choice in the future.

CHIKO solar more efficient and flexible solar mounting system solution waiting for you here!  Contact Us !
