Chiko Solar T-type carport is an efficient photovoltaic bracket solution specially designed for parking lots. It combines vehicle shelter and power generation benefits, and is widely applicable to factory zones, commercial centers, community parking spaces and other places.

晨科太阳能 T 型车棚，是专为停车场打造的高效光伏支架方案，兼顾停车防护与发电收益，广泛适用于企业厂区、商业中心与社区车位等场景。

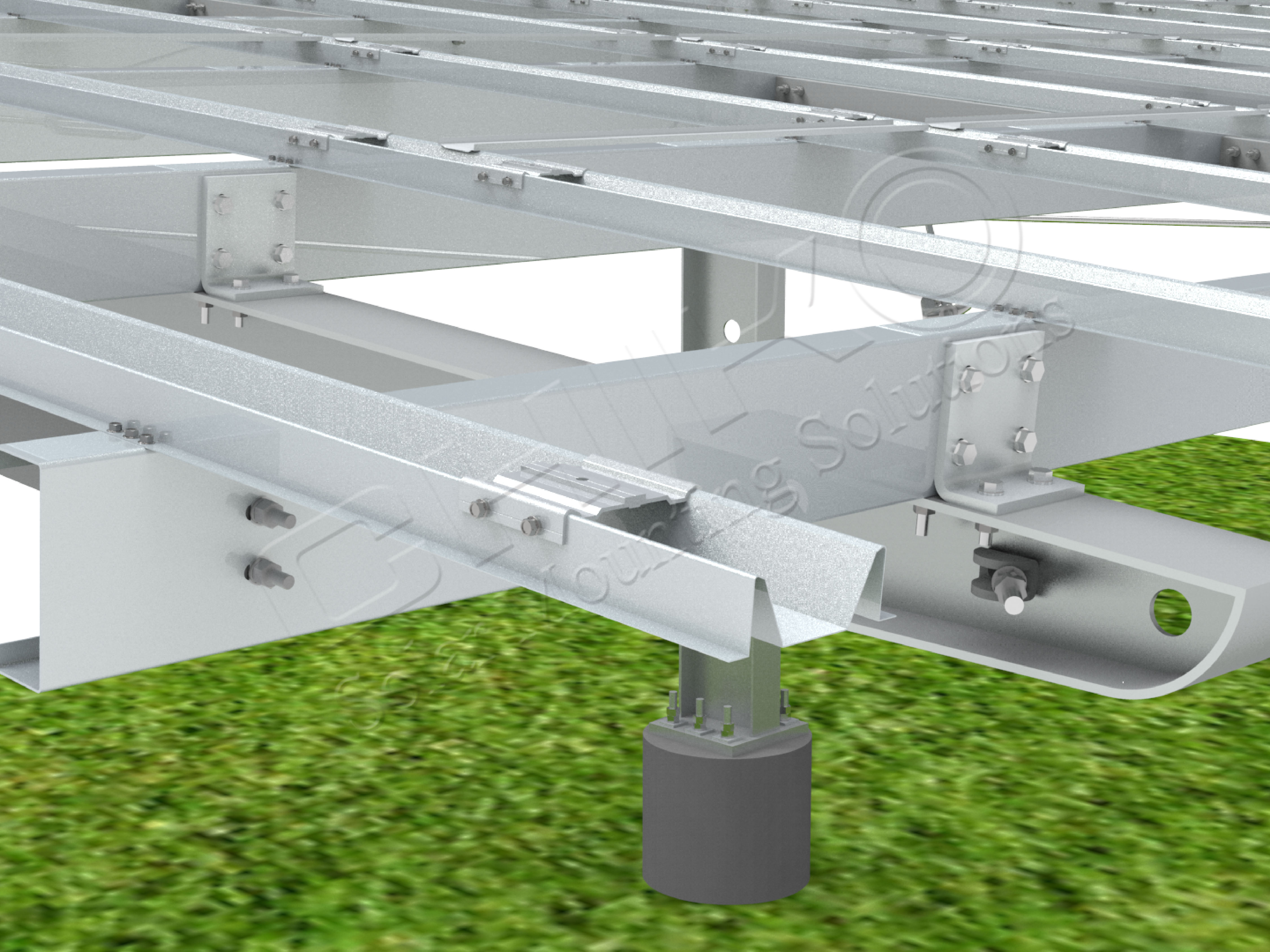

Made of Q235B hot-dip galvanized carbon steel and fitted with 304 stainless steel fasteners, the T-type carport features excellent anti-corrosion performance with a service life of up to 30 years. Optimized through mechanical design and equipped with reserved flow guide holes, the structure effectively disperses wind pressure. It can withstand wind speed up to 60m/s and snow load of 1.4KN per square meter, keeping stable and safe in harsh weather conditions.

T 型车棚采用 Q235B 热浸镀锌碳钢主体，搭配 304 不锈钢紧固件，整体防腐耐锈，使用寿命可达 30 年。结构框架经力学优化，表面预留导流孔，能有效分散强风荷载，可抵御最高 60m/s 风速与 1.4KN/㎡雪载，恶劣天气下依旧稳固安全。

Adopting modular prefabrication design, all parts are pre-cut and pre-drilled. On-site installation requires no welding and only simple assembly, which greatly shortens construction period and cuts labor costs. The bracket tilt angle is adjustable from 0 to 15 degrees to adapt to sunlight angles in different regions and make full use of solar energy resources.

模块化预制设计，所有部件预先切割、钻孔，现场无需焊接，直接拼接组装，大幅缩短工期，降低人工成本。支架倾角可在 0-15 度间灵活调节，适配不同纬度光照角度，最大化利用太阳能。

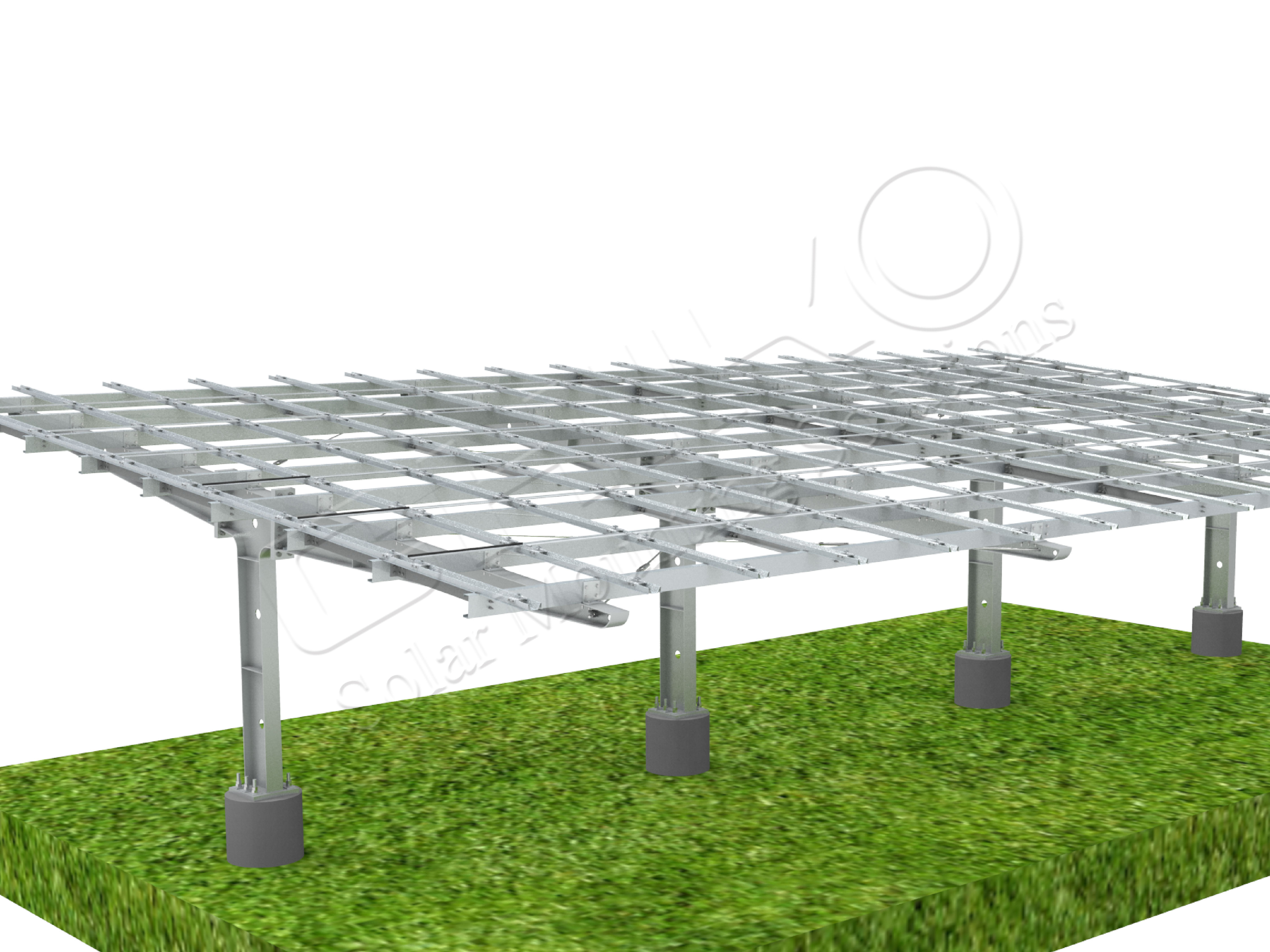

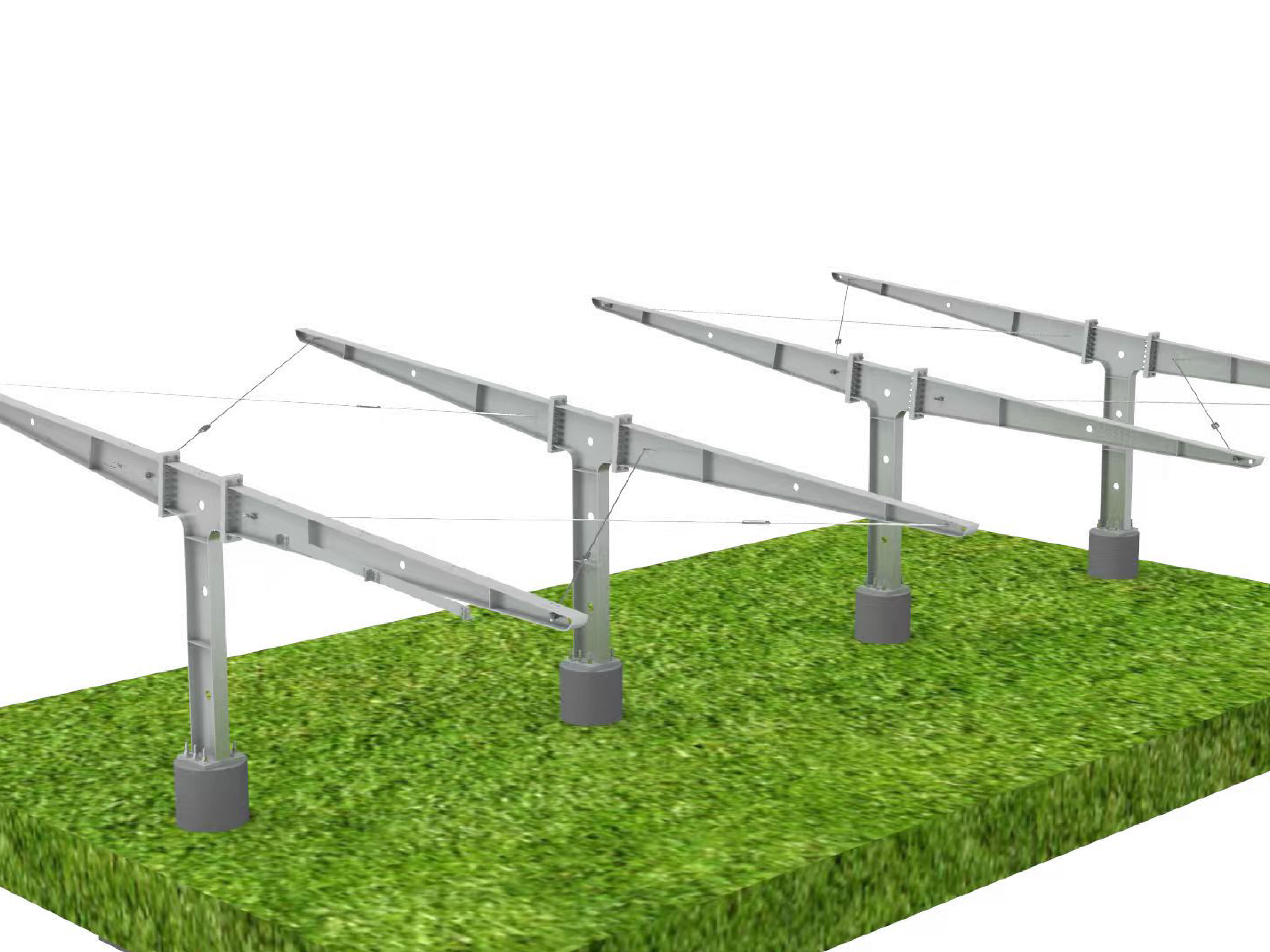

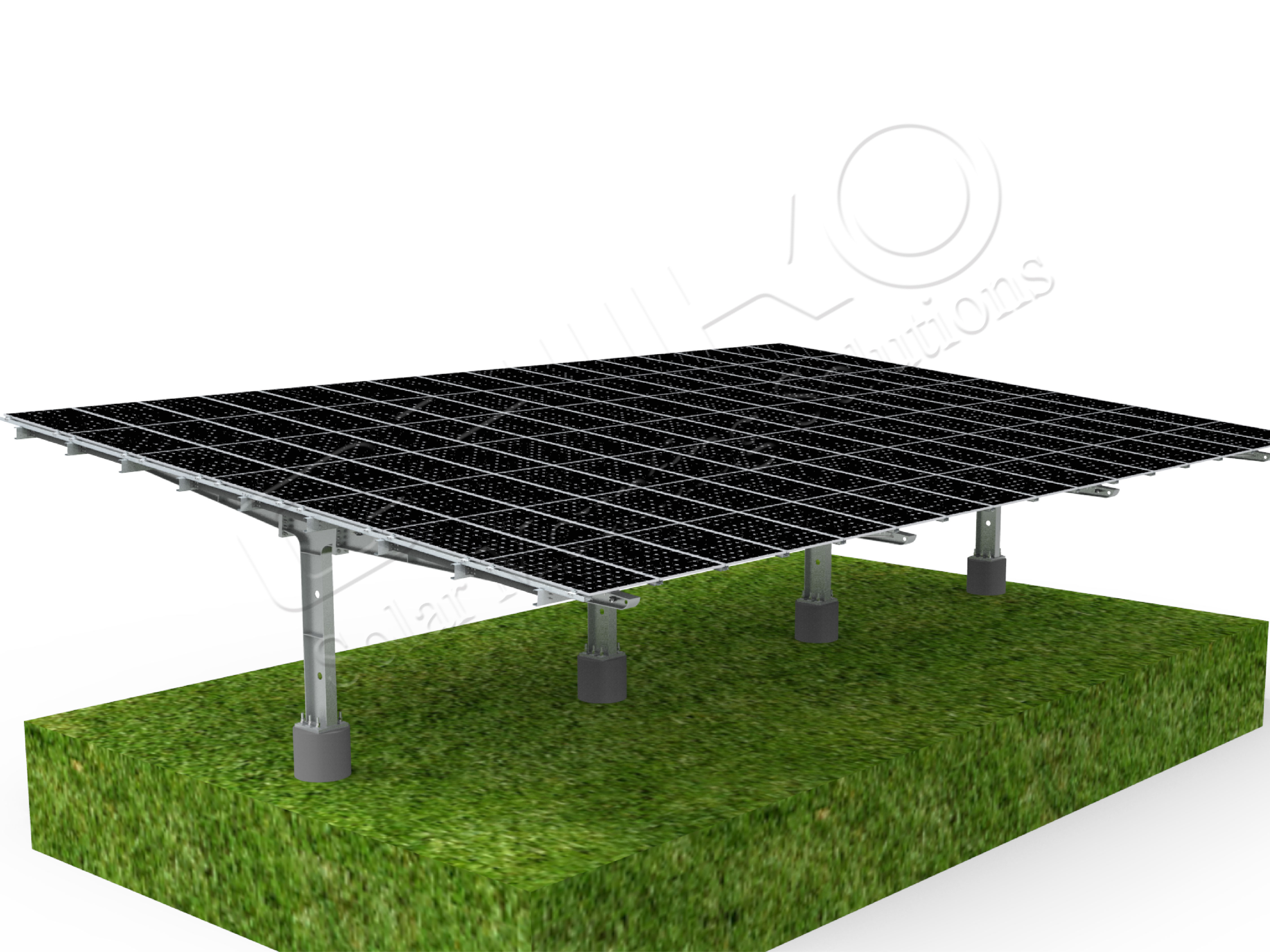

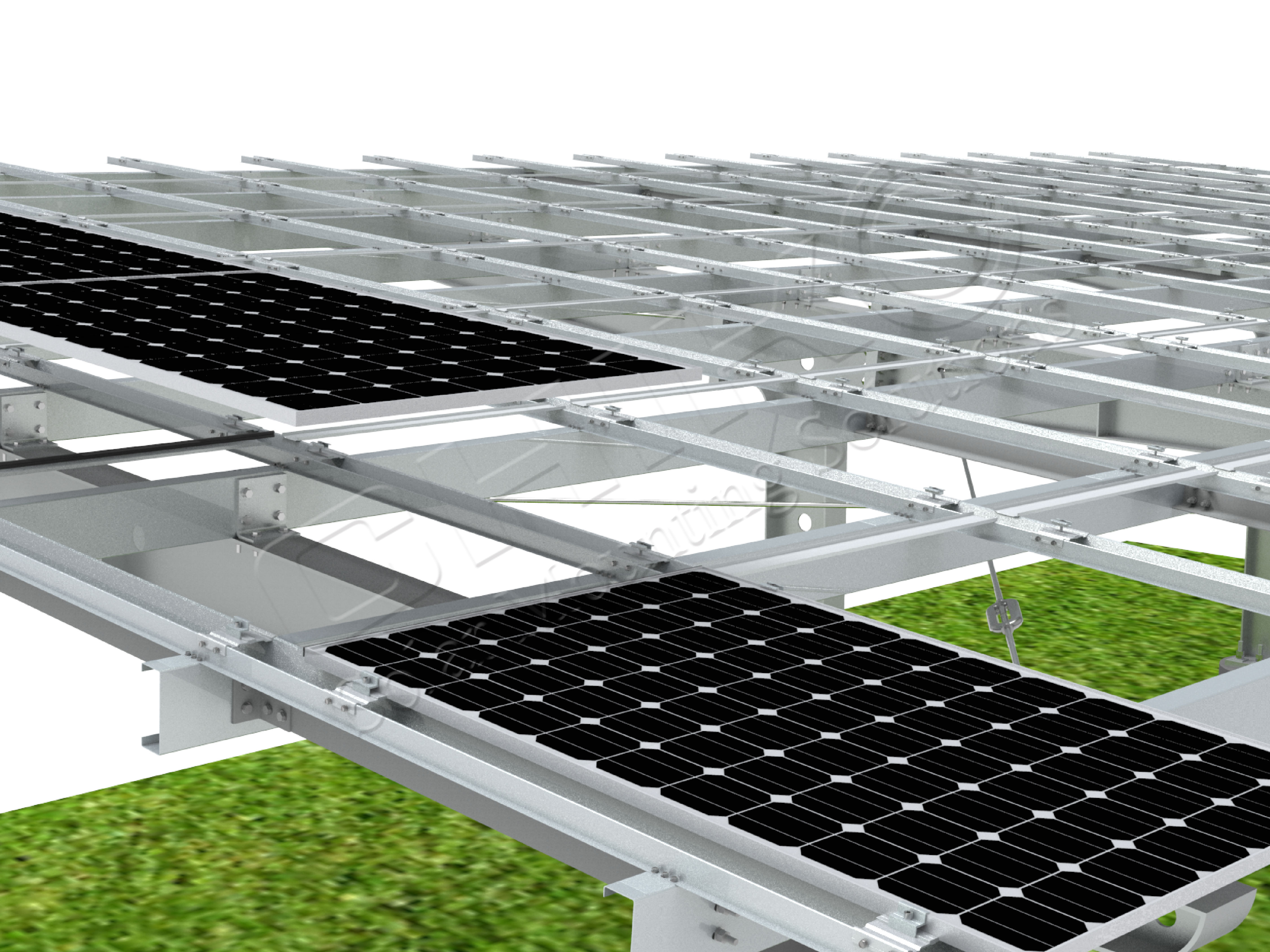

With concise single T-column structure, it is suitable for single-row and double-row parking layouts and improves space utilization without occupying extra land. The one-car-one-space design shields vehicles from sun, rain and wind damage. Meanwhile, photovoltaic panels can be installed to generate clean electricity, realizing dual values of parking and power generation.

单 T 柱结构简洁大气，可灵活适配单排或双排车位布局，空间利用率高，不占用额外场地。一车一位的设计，既为车辆遮阳挡雨，减少暴晒与雨雪侵蚀，又能铺设光伏组件清洁发电，实现停车与发电双重价值。

With reliable quality and mature solutions, Chiko Solar T-type carports have won recognition from customers worldwide. Choosing Chiko Solar T-type carport means choosing a practical, safe and durable integrated solution for parking and power generation.

晨科太阳能 T 型车棚凭借可靠品质与成熟方案，赢得全球客户认可。选择晨科太阳能 T 型车棚，就是选择高效、安全、耐用的停车发电一体化解决方案。
