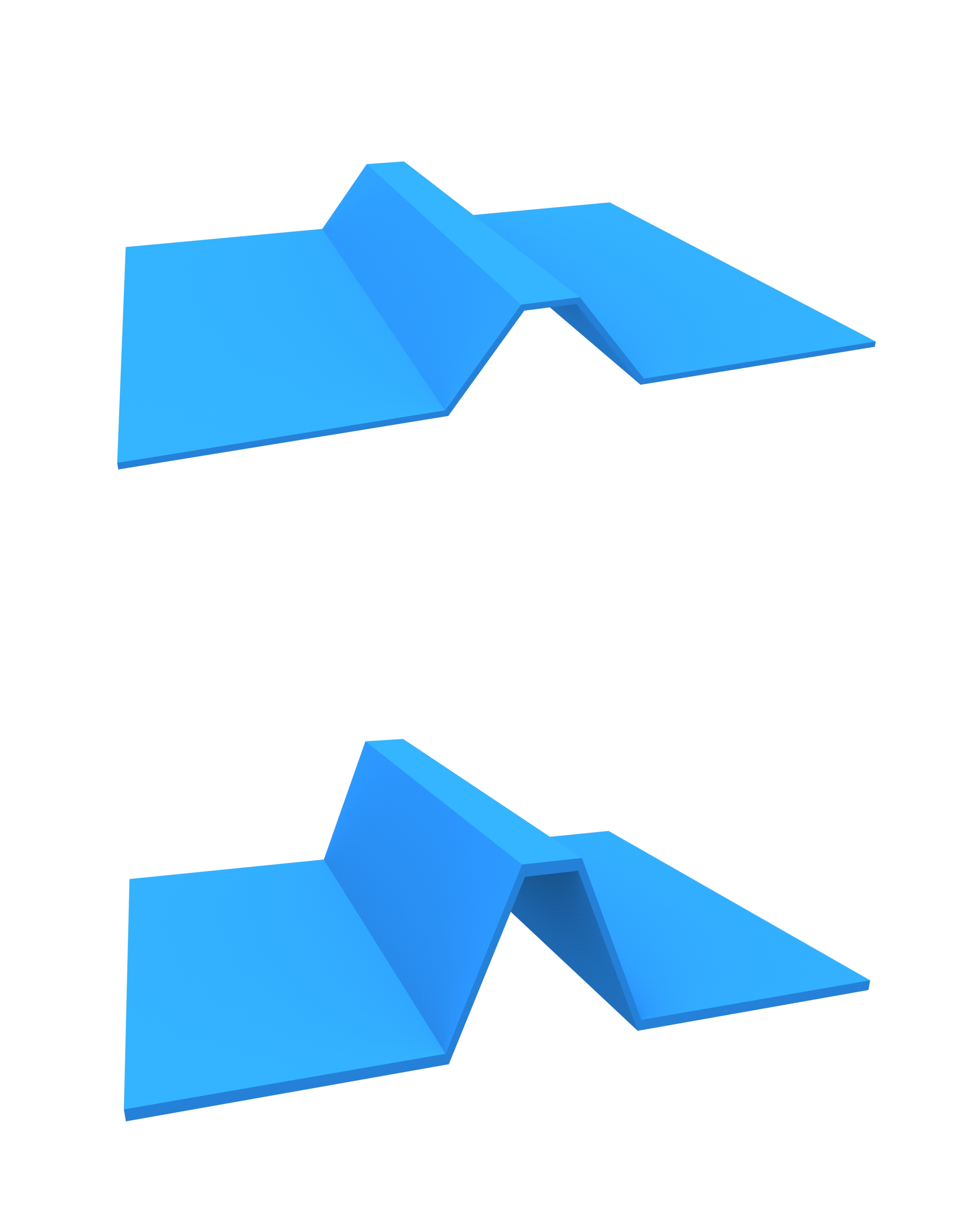

Firstly, trapezoidal roof are commen all over the world, but there are many different size of trapezoidal roofs.

首先我们了解下梯形彩钢瓦，它的形状固定的是梯形，但是宽度高度都有所不同。

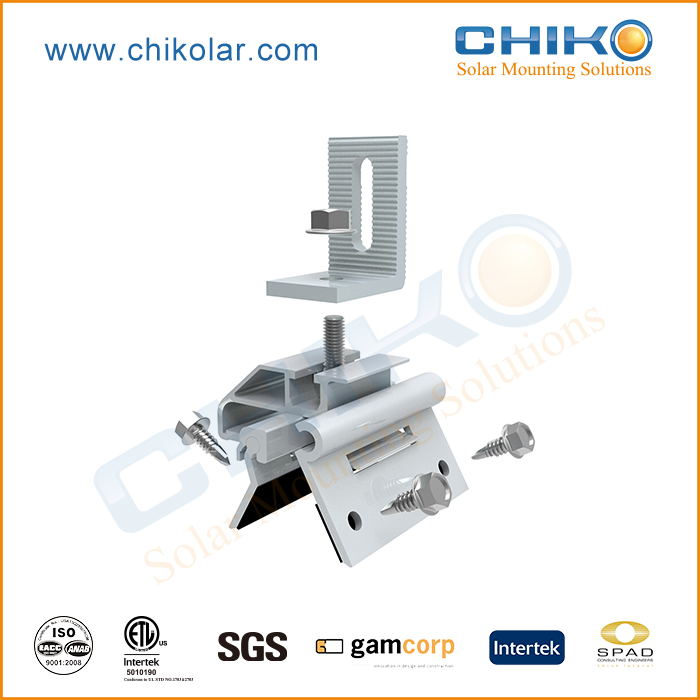

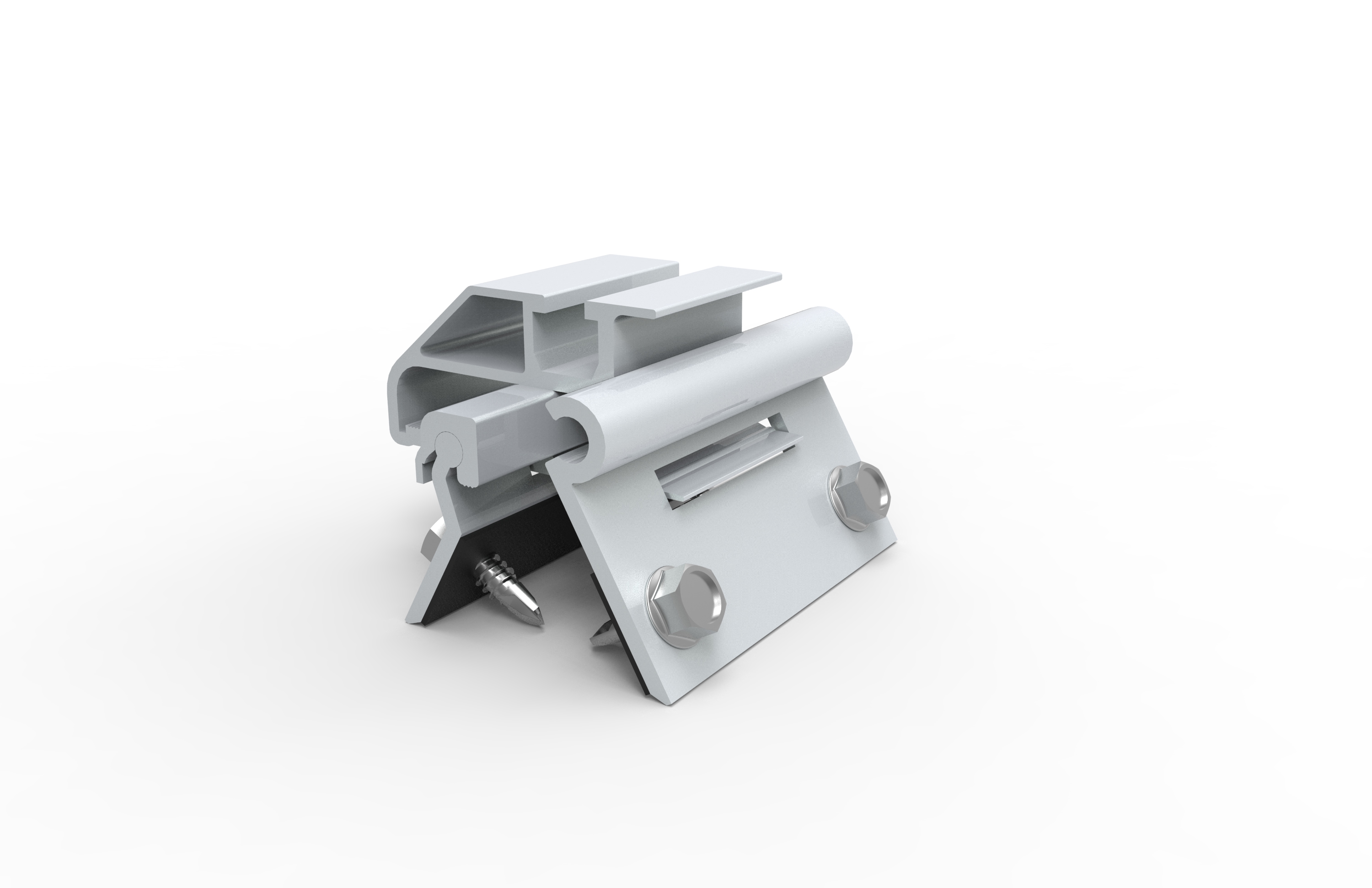

If we develop many types of clamps to match different size of trapezoidal roofs, will be time-consuming and laborious. How to choose the right product during installation is also a challenge for the installer. To solve this difficulty, Chiko designed an adjustable clamp suitable for all size trapezoidal Sheet -#384 Clamp.

根据不同的高度宽度，再去重新设计方案，是非常费时费力的。安装时如何挑选合适的产品对安装者也是一项挑战。为了解决这一难点，晨科设计了一种适用于所有梯形彩钢瓦尺寸的夹具-#384 壁虎夹具。

#384 夹具的优点：

The benificial of #384 clamp:

①预组装，安装省时

Pre-assembled, time saving for install

②适用于任何尺寸的梯形铁皮屋顶

Available for any size of trapezoidal roof

③两侧使用EPDM垫片密封，防水效果极佳

Sealed with EPDM at both side, with better waterproof effect

④和屋顶的接触面积较大，可以有更好的屋顶荷载

Greater contact area with roof , which provide better load on roof

⑤AL 6005-T5材质，有极强的防腐蚀性能

Main Material AL 6005-T5, with better Corrosion resistance

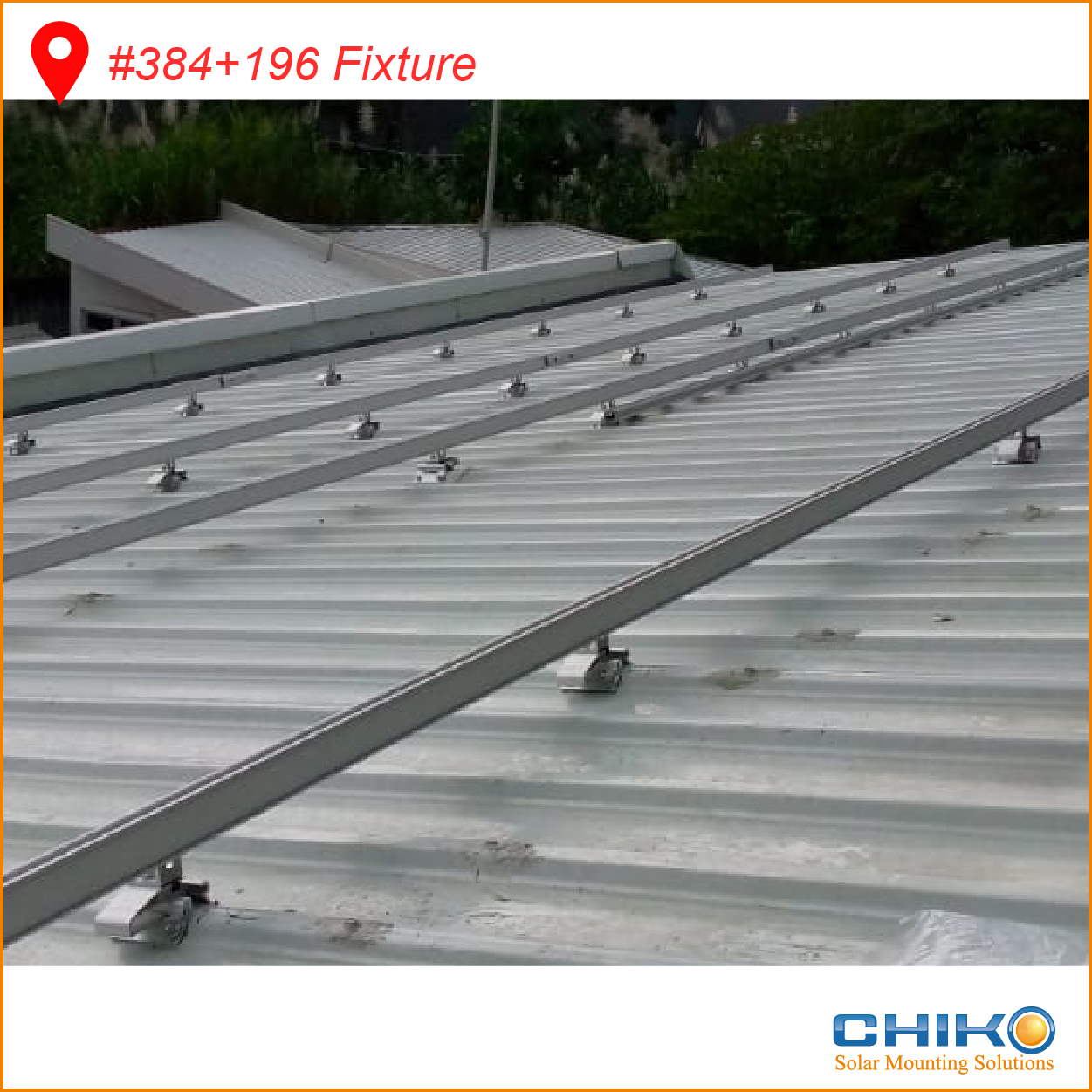

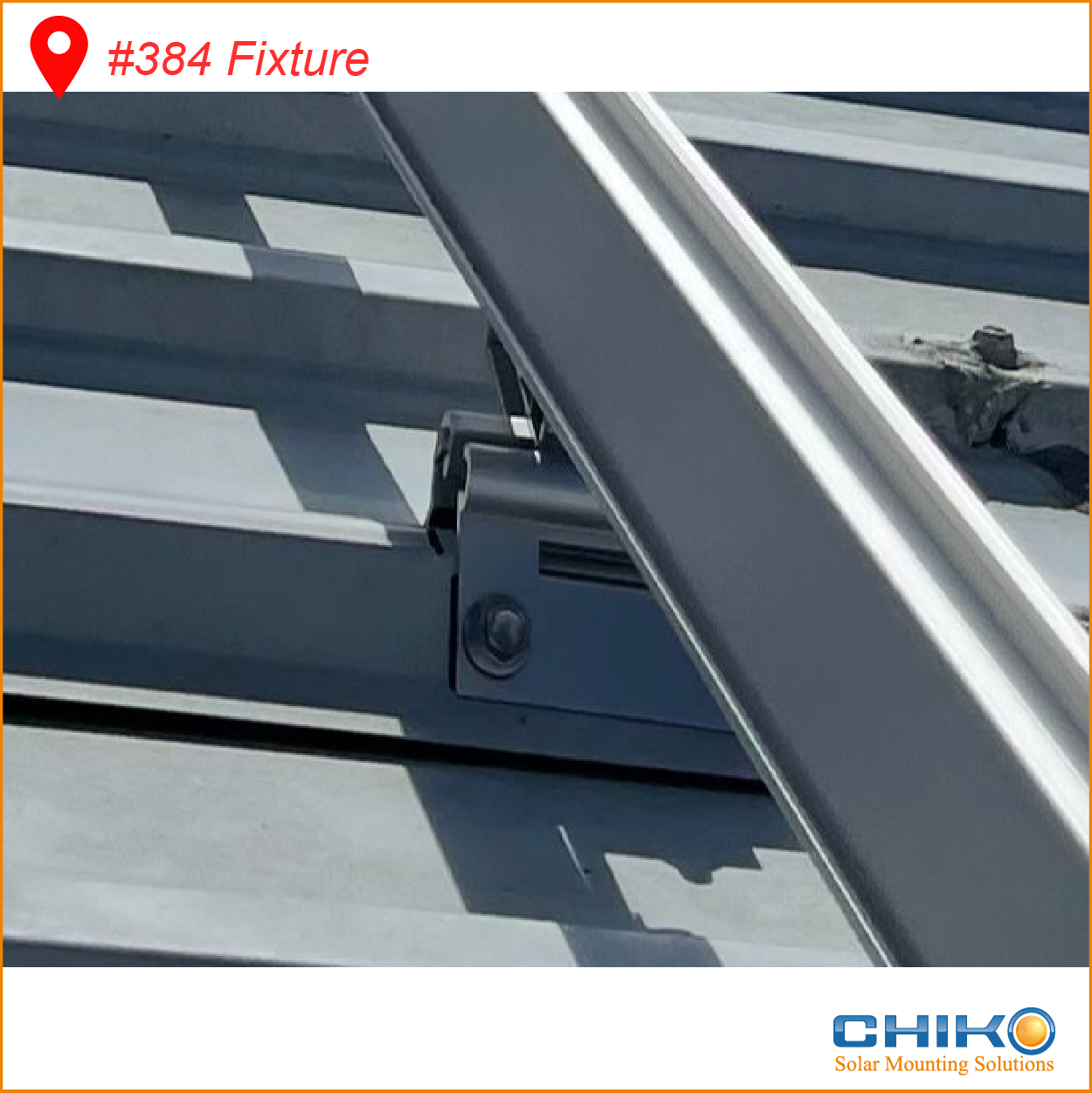

This clamps is also used in a new project in Panama. The roofing type of this project is trapezoidal metal sheet. During production, we will pre-assemble this solar clamp in advance, then the installation of the project will be fastly. Let's take a look at the overall effect:

晨科最新的铁皮屋顶支架项目就用了这款夹具。该项目位于巴拿马，是中美洲最南部的国家。该项目的屋顶类型就是梯形彩钢瓦，我们为他推荐了这款#384 壁虎夹具。在生产的时候，我们会提前预组装好这款夹具，使项目安装起来方便快速，只需要调整一下宽度高度。下面让我们看看整体效果

CHIKO Solar a variety of efficient and flexible solar bracket solutions waiting for you! Welcome to consult!

晨科太阳能各种高效灵活的光伏支架解决方案在这里等你! 欢迎咨询！
